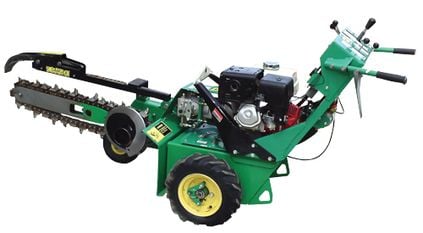

Trencher (Walk Behind)
Description
The Red Roo HT912 is an all hydraulic compact trencher that is perfect for the installation of irrigation, sprinkler and electrical systems. It is powered by a 9hp Honda OHV engine. The HT912 is available with a 600mm (24") boom.
Key Features
Engine | |
Engine Type | HONDA 9HP |
General | |
Trench Depth | 300mm - 450mm )12" - 18" |
Trench Width | 100mm (4") |
Boom Travel Up | 5 1/4 |
Boom Travel Down | 59 1/4 |
Front Wheel to Handlebar | 889mm |
Boom End to Handlebar | 2080mm (81") |
Wheel Width | 711mm (28") |
Handlebar Width | 736mm (29") |
Total Height | 110mm (43") |
Wheel Base | 82mm (3.25") |
Weight | 280kgs (620lbs) |
Ground Speed Forward | 40mpm (132fpm) |
Ground Speed Reverse | 17mpm (58fpm) |
Digging Chain Speed | 70mpm (227fpm) |
Mode of Transport
Ute / Tow Vehicle
